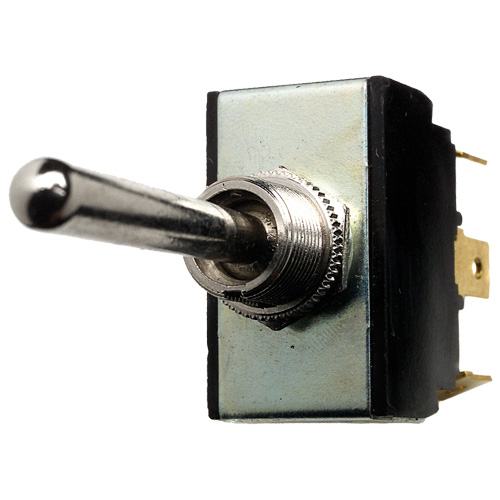

DPDT On/Off/ On Blade Long Handle HL SW

Toggle switches are manufactured in many different variations to handle most vehicle and equipment applications.

Toggle switches are usually classified by the number of poles and throws to identify their basic operation.

Features

  • DPDT On/Off/ On Blade Long Handle HL SW

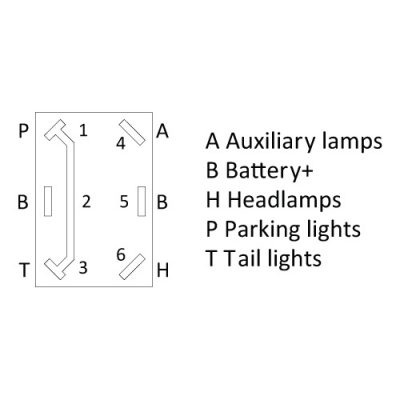

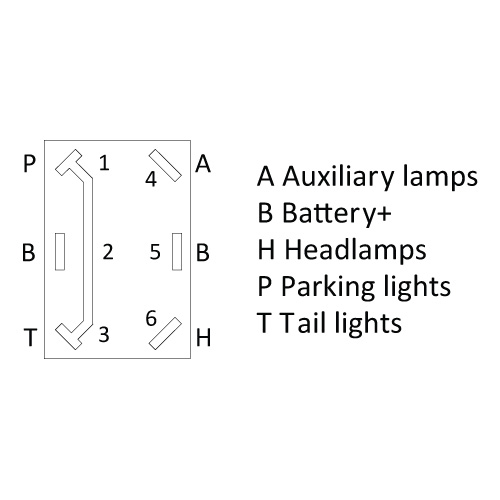

  • Bridged 4 circuit, headlamp switch
  • 6 Blade terminals, silver contacts
  • Stem: thread 15/32-32, L 12mm, D 12mm
  • Panel thickness: 6.35mm, Handle:38mm

Specifications

Voltage

Amperage

Configuration

Modes

Dimensions

Series
