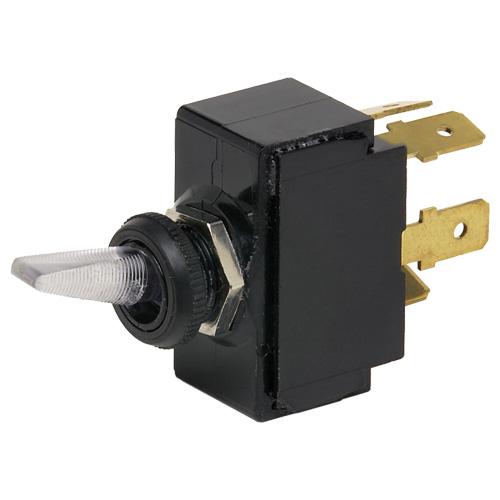

SPDT On/Off/ On Blade Red Illuminated

Toggle switches are manufactured in many different variations to handle most vehicle and equipment applications.

Toggle switches are usually classified by the number of poles and throws to identify their basic operation.

Features

  • SPDT On/Off/ On Blade Red Illuminated
  • Weather resistant, O-ring seal bushing
  • Clear OFF, illuminates red ON
  • 5 Blade terminals, silver contacts
  • Stem: thread 15/32-32, L 9mm, D 12mm
  • Panel thickness: 6.35mm, Handle:17mm

Specifications

Voltage

Amperage

Configuration

Modes

Dimensions

Series
