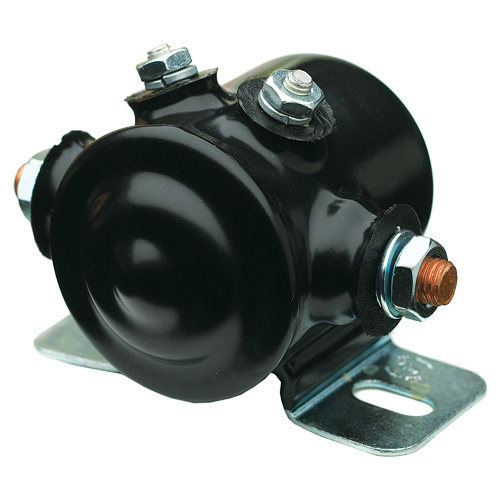

SPST 24V 85A Cont PVC Coat Solenoid

A solenoid in an electromagnetic relay used in a direct current wiring system between a low current capacity switch and a high current load requirement.

Weatherproof PVC coated housing versions are UL listed and ISO 8846 Marine grade.

Features

  • Continuous Duty PVC Coated Solenoid SPST 24V 85A
  • 4 stud, Insulated stud earth
  • SPST Normally open (one circuit) OFF/ON
  • Copper Stud terminals 5/16″-24
  • Insulated Coil terminals 10-32
  • Plated steel housing, nuts & washers Inc.
  • Mounting holes 8mm x 15mm, 56mm CTC
  • Mount with brand cap facing DOWN
  • Int. ratings: 10 sec ON, 30 min OFF

Specifications

Voltage

Amperage

Dimensions

Configuration

Modes

Series

Application
