880175 – TR Series

Cuts all battery power from vehicle electrical systems with applications needing switching of two circuits, or both positive and negative. 500A continuous current rating for each of the two circuits (using 2 x 4/0 input and 2 x 4/0 output cables). Can be used to switch two vehicle voltage circuits simultaneously (24V and 12V). Disconnect a battery or multiple batteries, in either the positive or the negative line.

Features

  • Max operating voltage: 48V DC
  • Max continuous current: 500A per circuit. with 2 x 4/0 input and 2 x 4/0 output cables
    350A per circuit. with 1 x 4/0 input and 1 x 4/0 output cables
  • Cranking rating (30sec): 2250A per circuit. with 2 x 4/0 input and 2 x 4/0 output cables
    1750A per circuit. with 1 x 4/0 input and 1 x 4/0 output cables
  • Inrush rating (1 sec): 3000A per circuit with 2 x 4/0 + 1 x 2 AWG

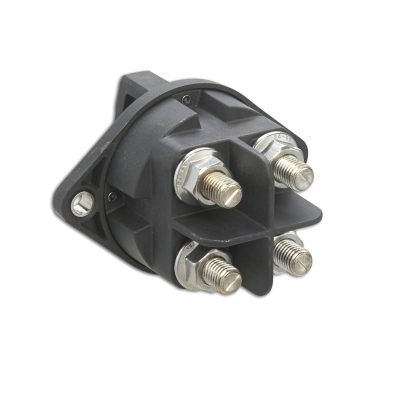

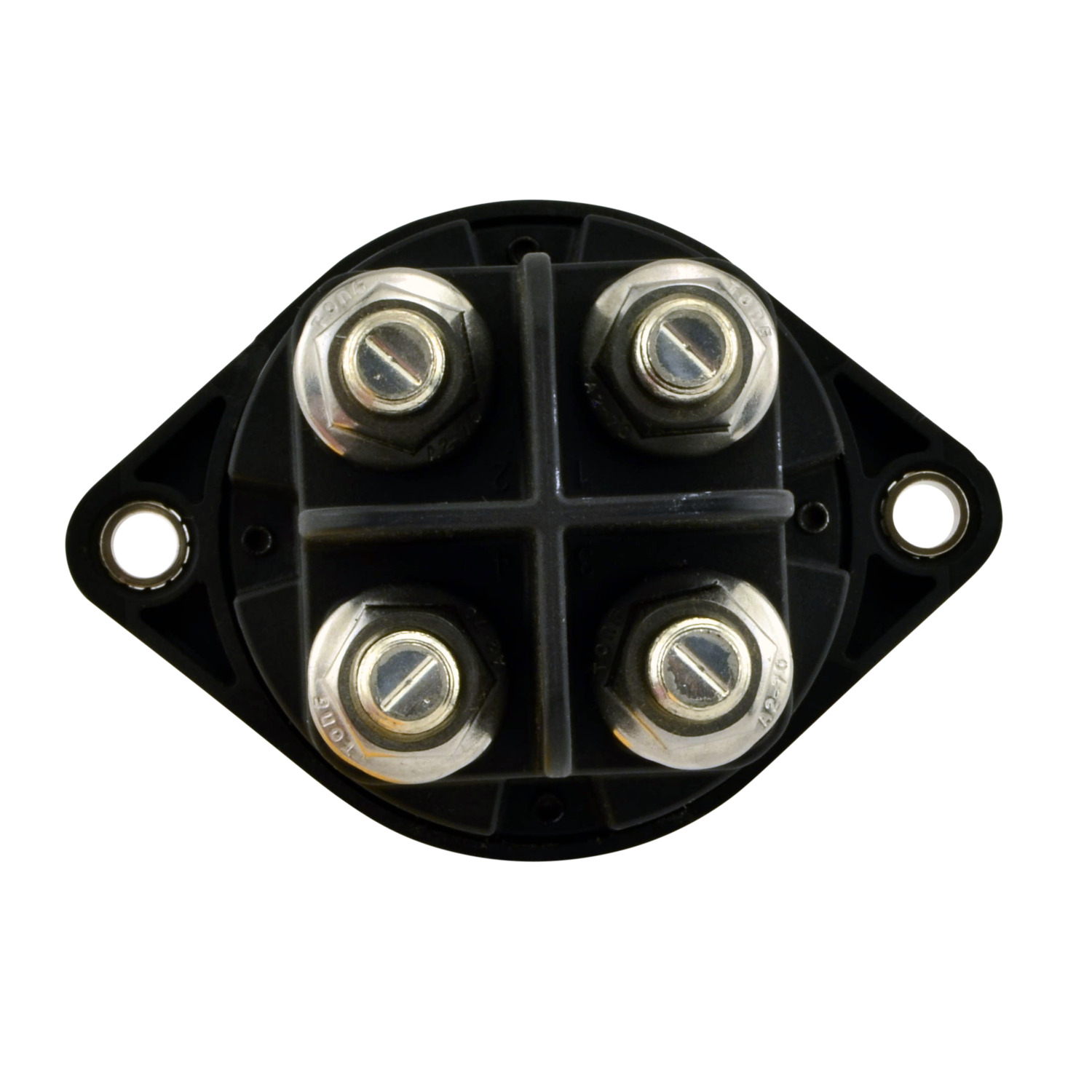

  • Terminal stud size: M12 x 25mm.
  • Temperature range: -50° to 85°C. DC-Rated to 105°C
  • Humidity: 0 – 95% RH
  • Shock: 30 G
  • Vibration: 8 G
  • Ingress rating: IP67 & IP69K

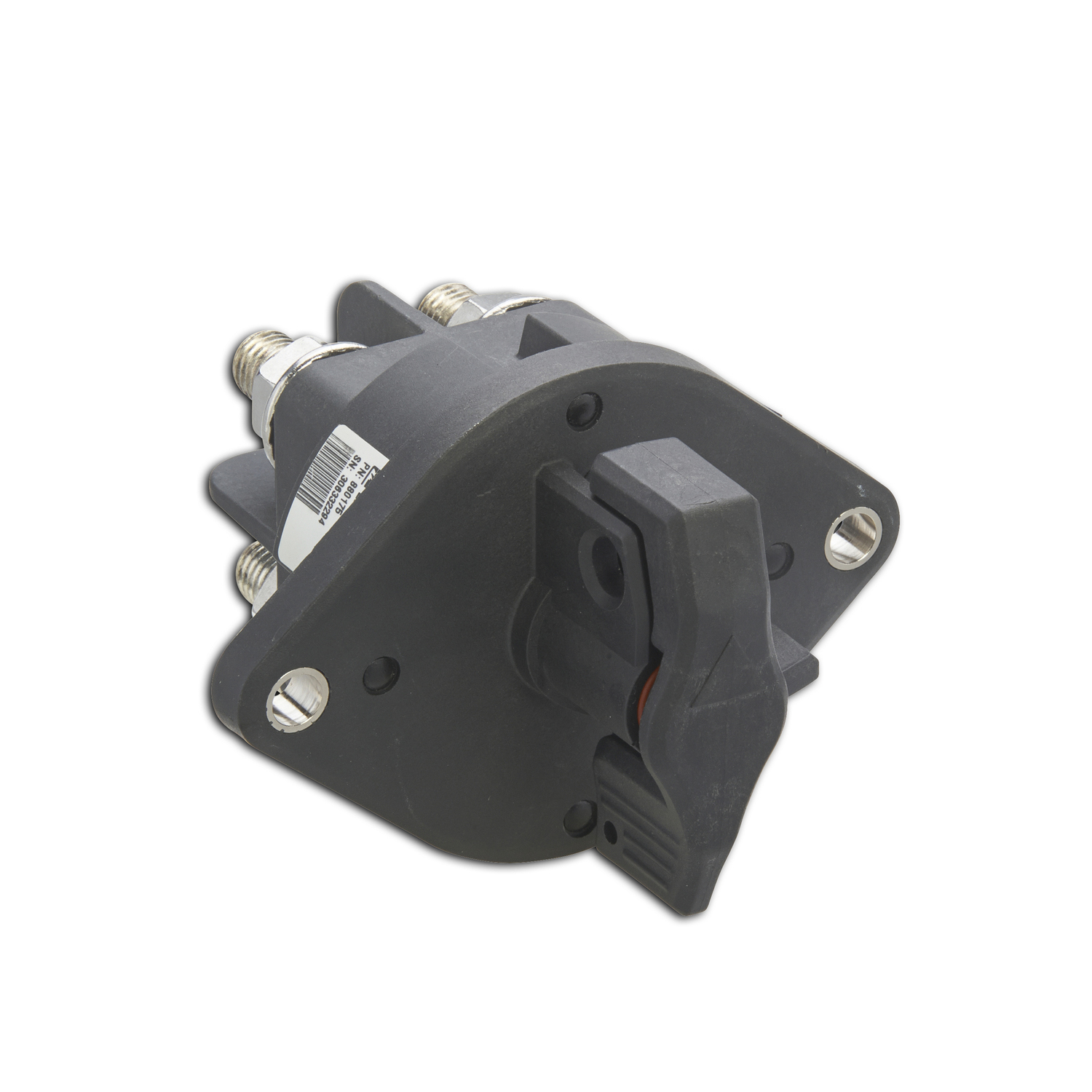

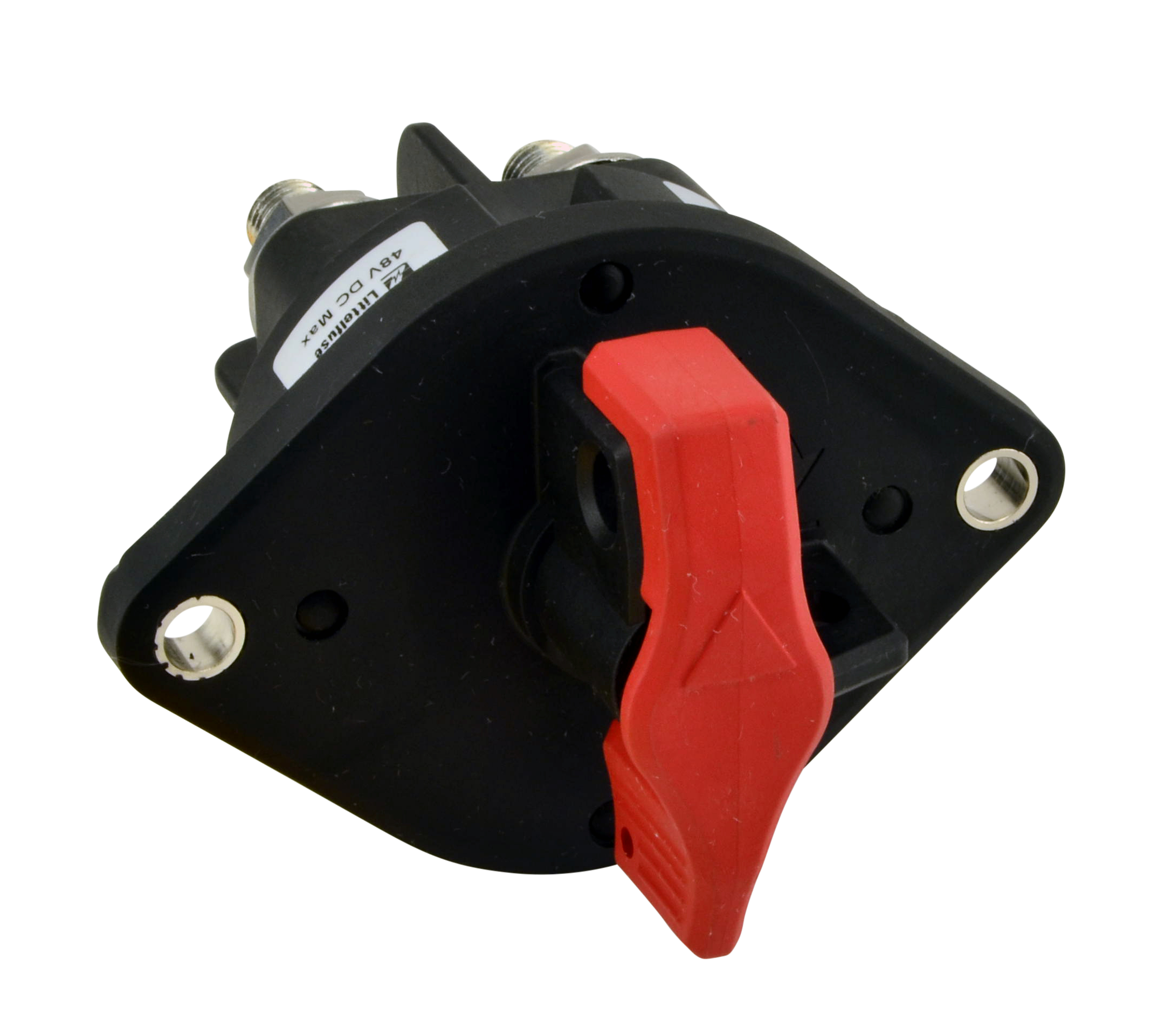

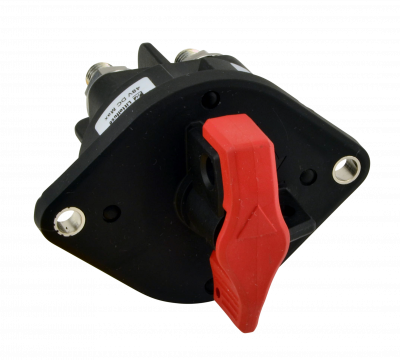

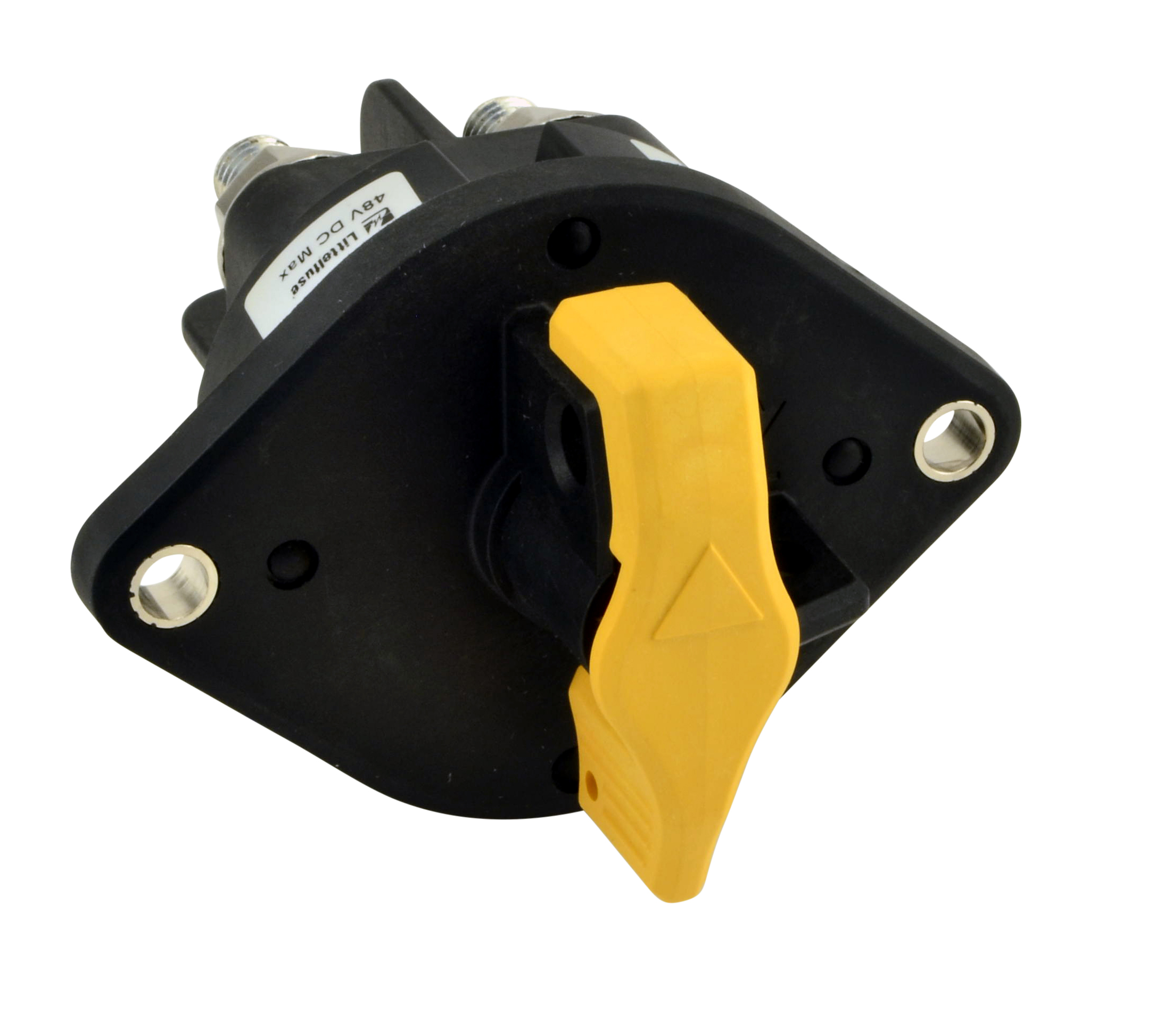

  • 880175 (Black) | 880175-0002 (Yellow) | 880175-0001 (Red)

View Product Information Sheet

Specifications

Voltage

Series

Dimensions

Configuration

Body colour

Approvals

,

Modes

Application

,

Part #

880175BX Black Handle Battery Master Switch
880175-0001BX Red Handle Battery Master Switch
880175-0002BX Yellow Handle Battery Master Switch
